Diagrams

June 13, 2016 Erik Johnson

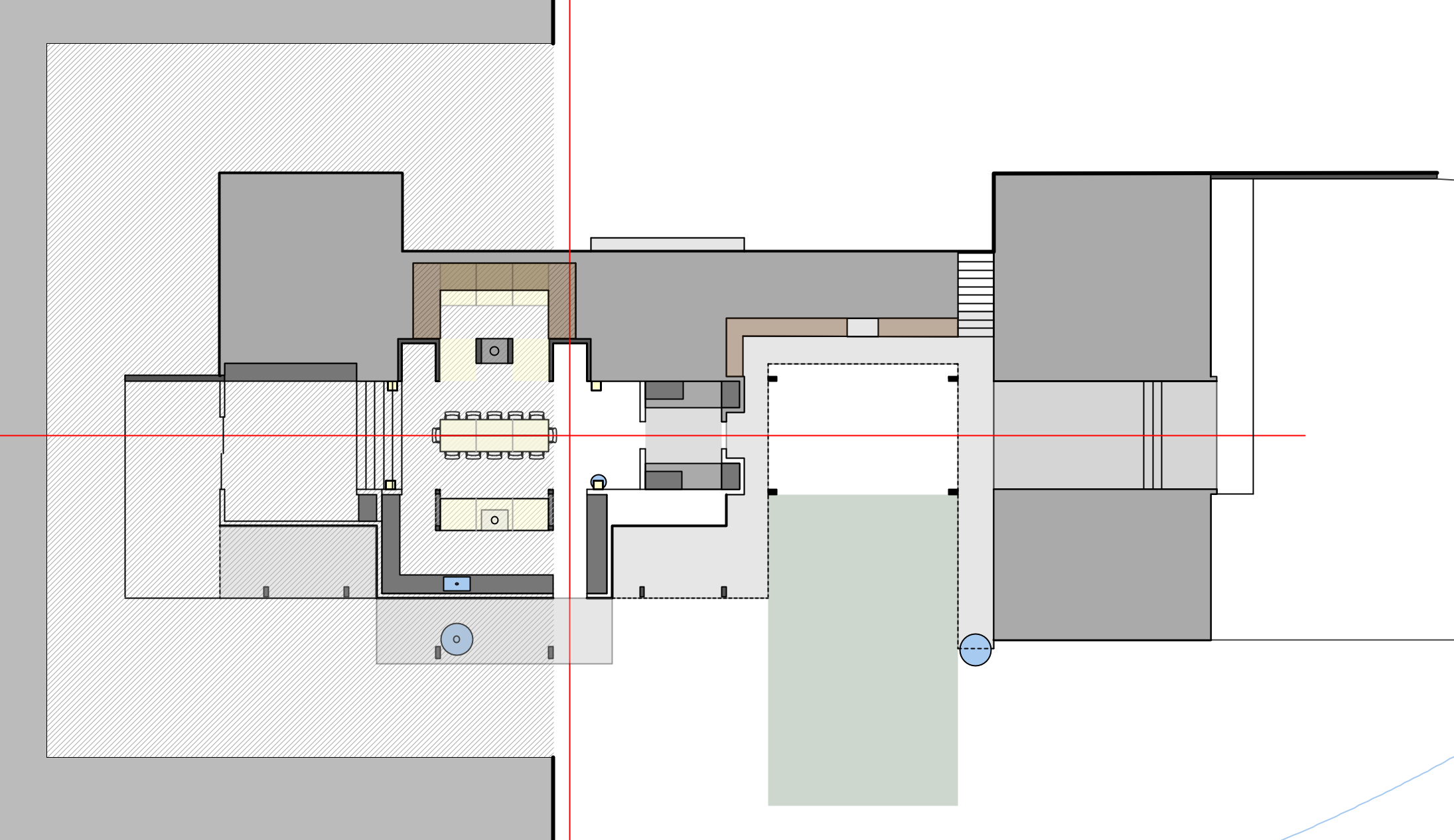

Diagram 1. Entering Rooms - Field/Entry Walkthru/Courtyard/Front Door/House/Woods

Rooms can be any scale from a large field to a front door alcove. In this instance, one room leads into another, in a sequence that connects you with the landscape and brings you further into the house.

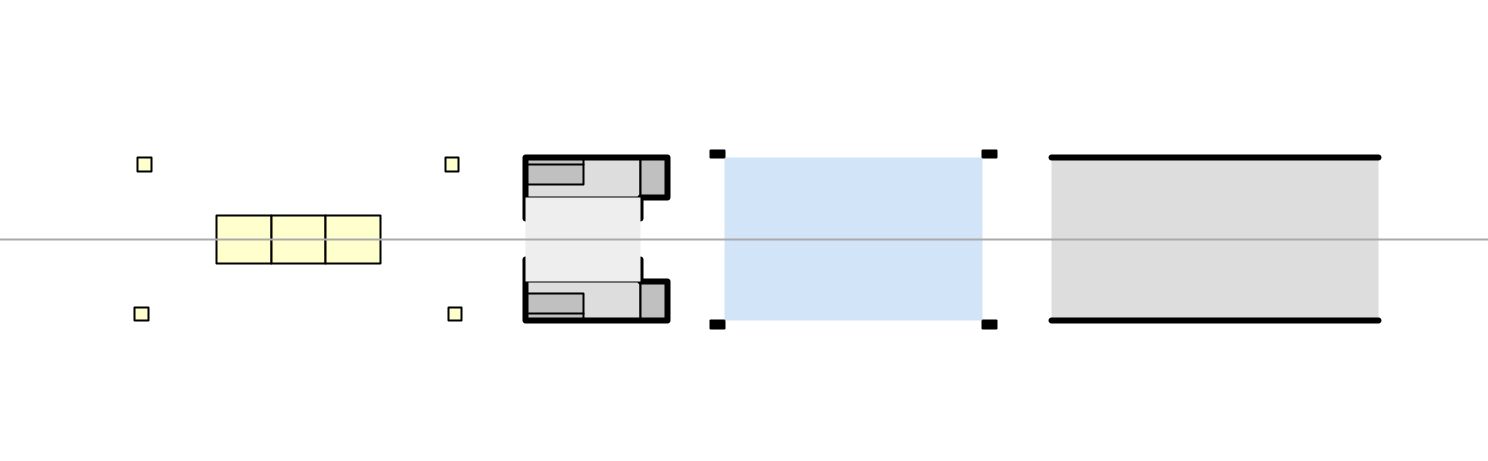

Diagram 2. Repetition & Light

The main axis of the house guides you through alternating experiences of light.

Entry Walkthru - darkened/covered.

Courtyard - bright/open.

Entry - dim/enclosed

Main House - Bright skylights above/ an open covering

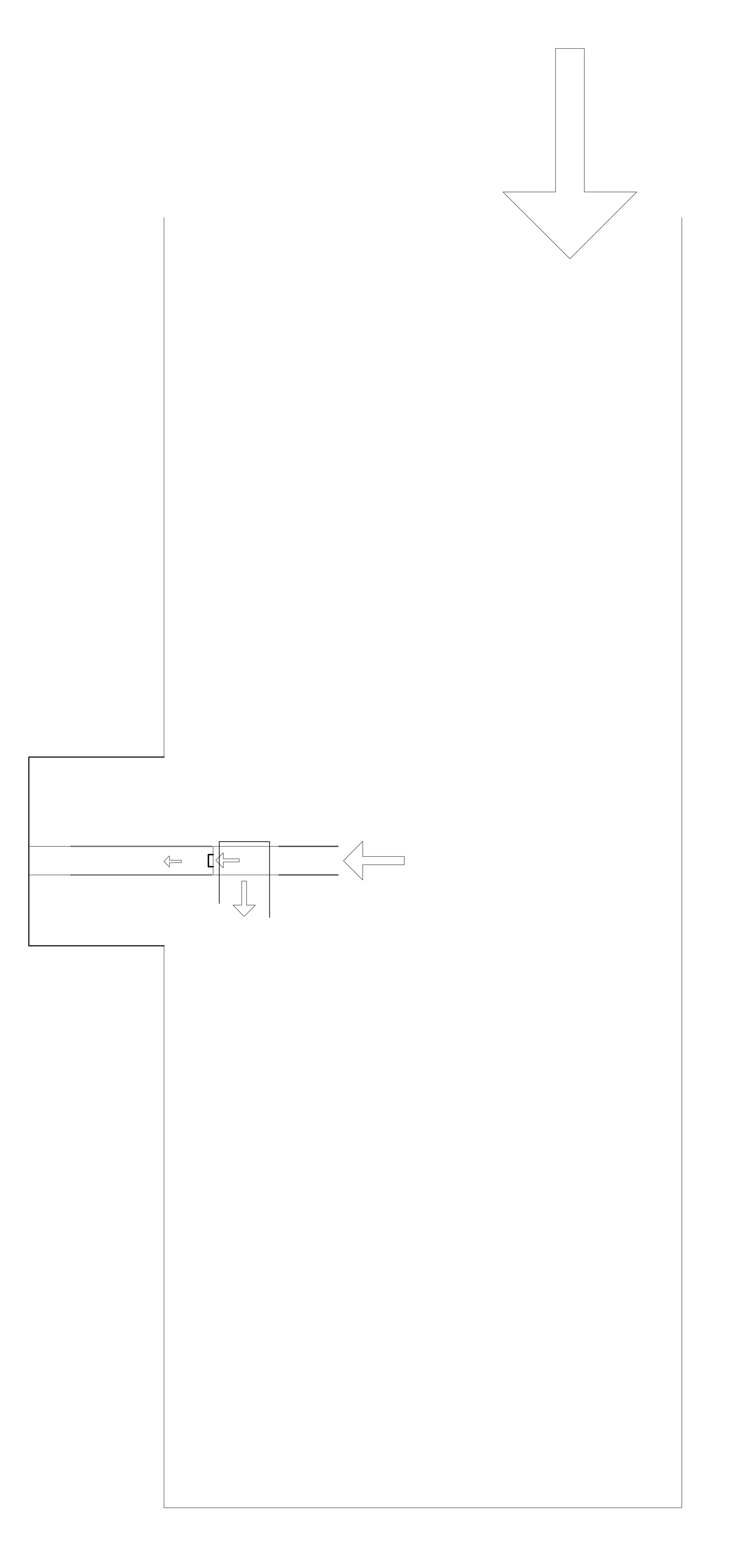

Diagram 3. Rhythm & Structure

Columns define space, direct movement in the house, and hold up the roof and upper level. Concrete walls define space, connect to the heaviness of the earth, and shelter. The location of these elements throughout the house form a rhythm experienced visually when moving through the house, making up a whole in the same way music is composed of individual parts.

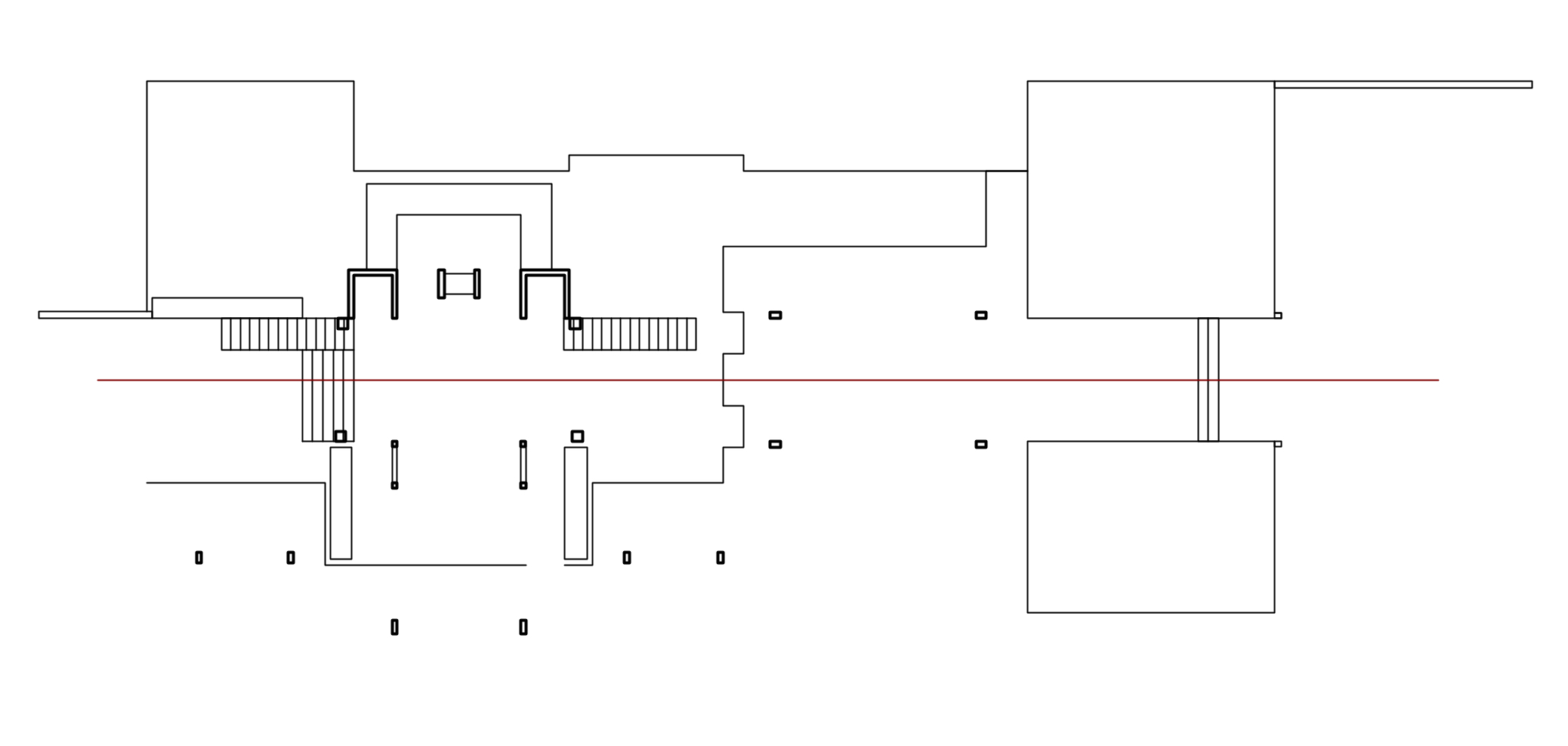

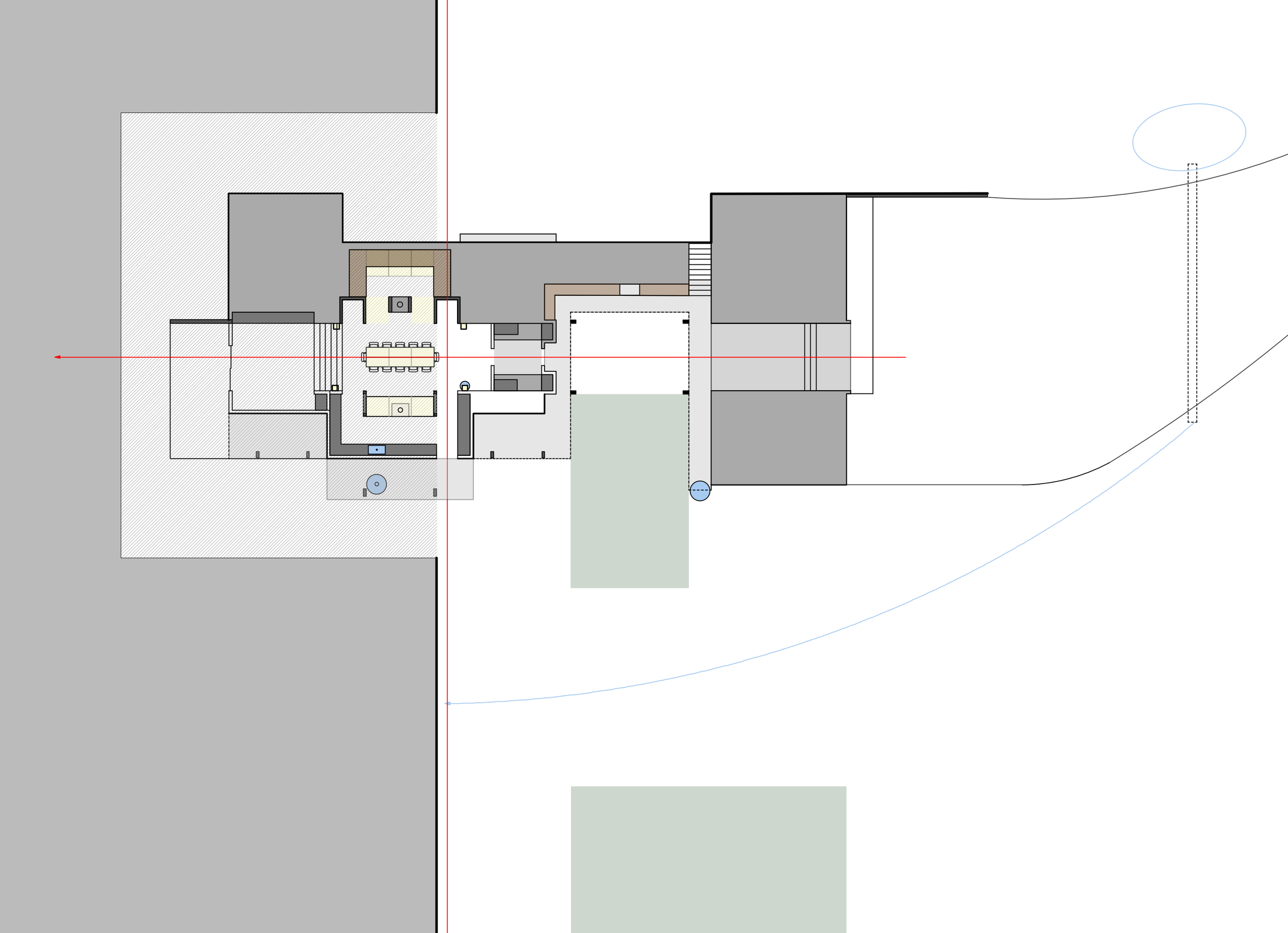

Diagram 4. Field's Edge Plan

Every piece of furniture becomes an integral part of the unfolding plan of rooms, rhythm and light. Forming a story, a song that is being sung.


In Drawings, Field's Edge Progress
Comment

The Site Plan

December 10, 2015 Erik Johnson

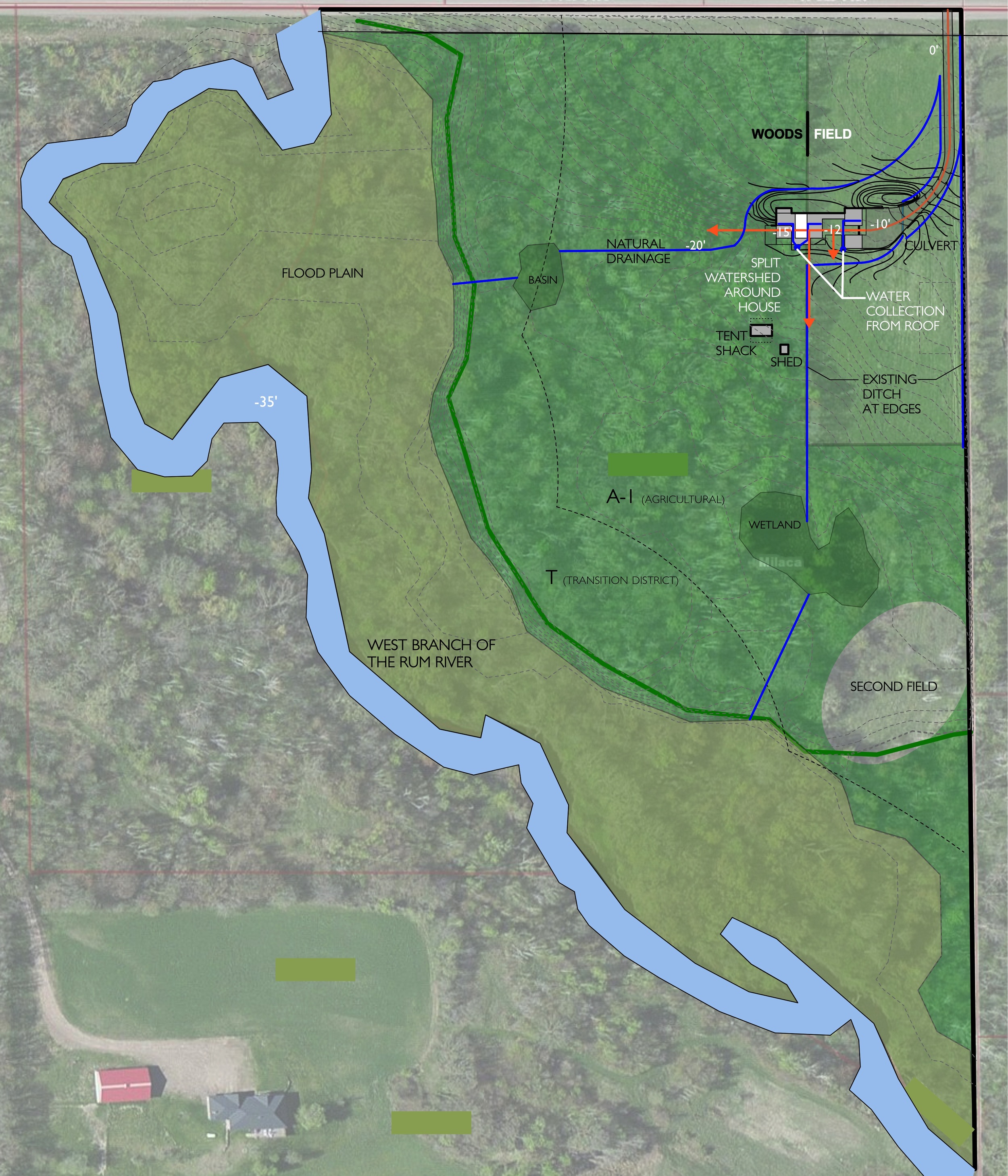

This piece of land is about water. More specifically the movement of water to the river. There is a 35' drop from the point of entry at the driveway on the northeast corner to the river along the southwest border, and the sign of water's movement is evident throughout. There are three main zones here: the field that was cleared by the farmer who formerly owned it, the woods on high land comprised of trees such as birch, and then the woods of the flood plain, comprised of large towering maples, oaks and ever changing undergrowth. There are two primary courses for water movement: a natural swale that runs from the north half of the field almost directly west to a basin that then overflows to the flood plain, and the ditches on the edges of the field that run south until they empty into a wetland, which also spills over into the flood plain. Depending on the time of year the flood plain will either be completely covered with an overflowing river, or teeming with secondary rivers formed in low lying areas, or it may be completely dry, usually the case by summer.  What we knew almost immediately, but had confirmed to us after camping here for two summers, is that there is a draw down toward this river. While standing in the field you are pulled into those woods, both for shelter and beauty, and then through those woods down to the flood plain, and finally you emerge at the river in a moment of discovery. There is a gravitational pull toward the river and we find ourselves making the same trip, as often as we can, that the rain makes when it hits the earth.

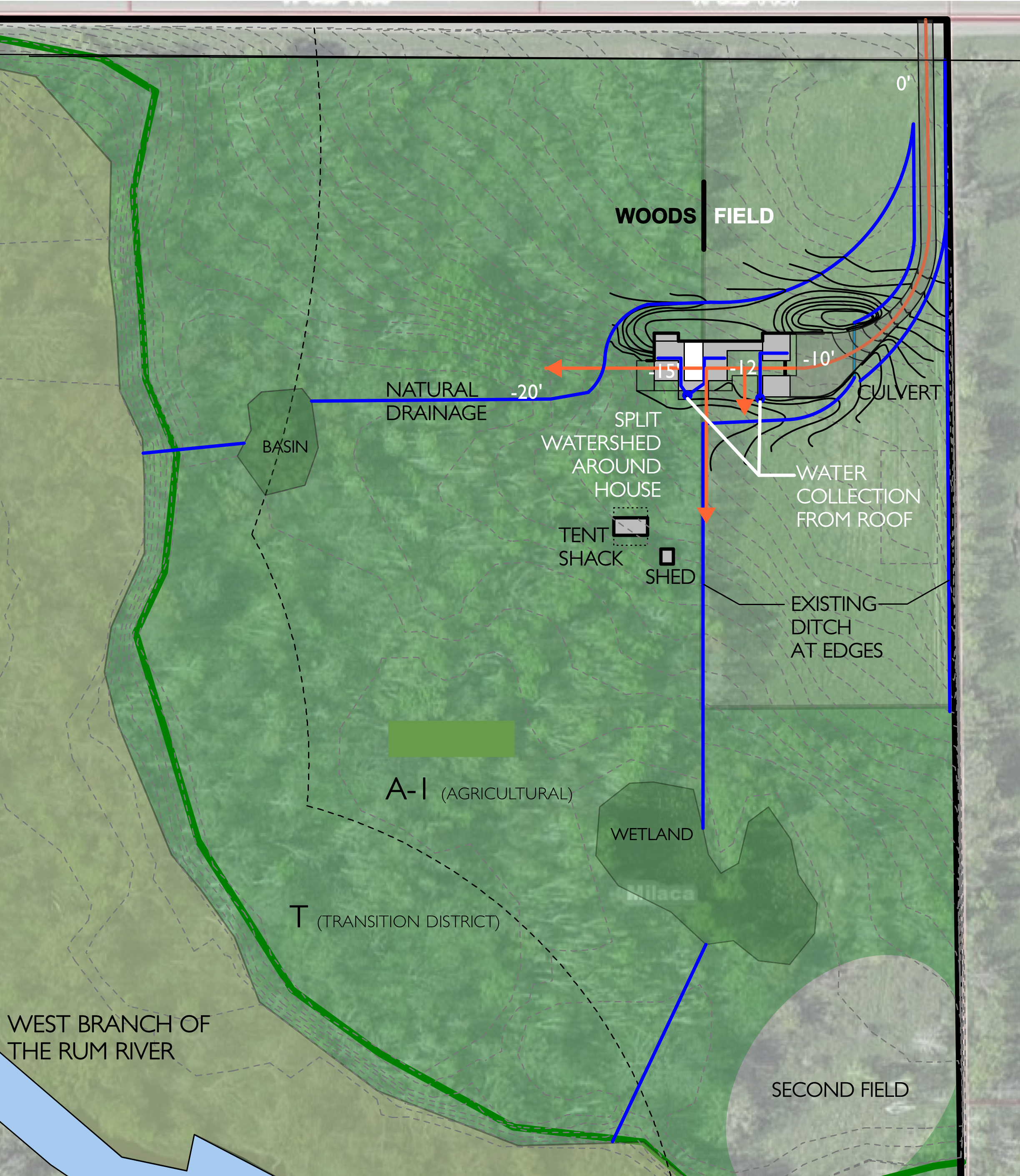

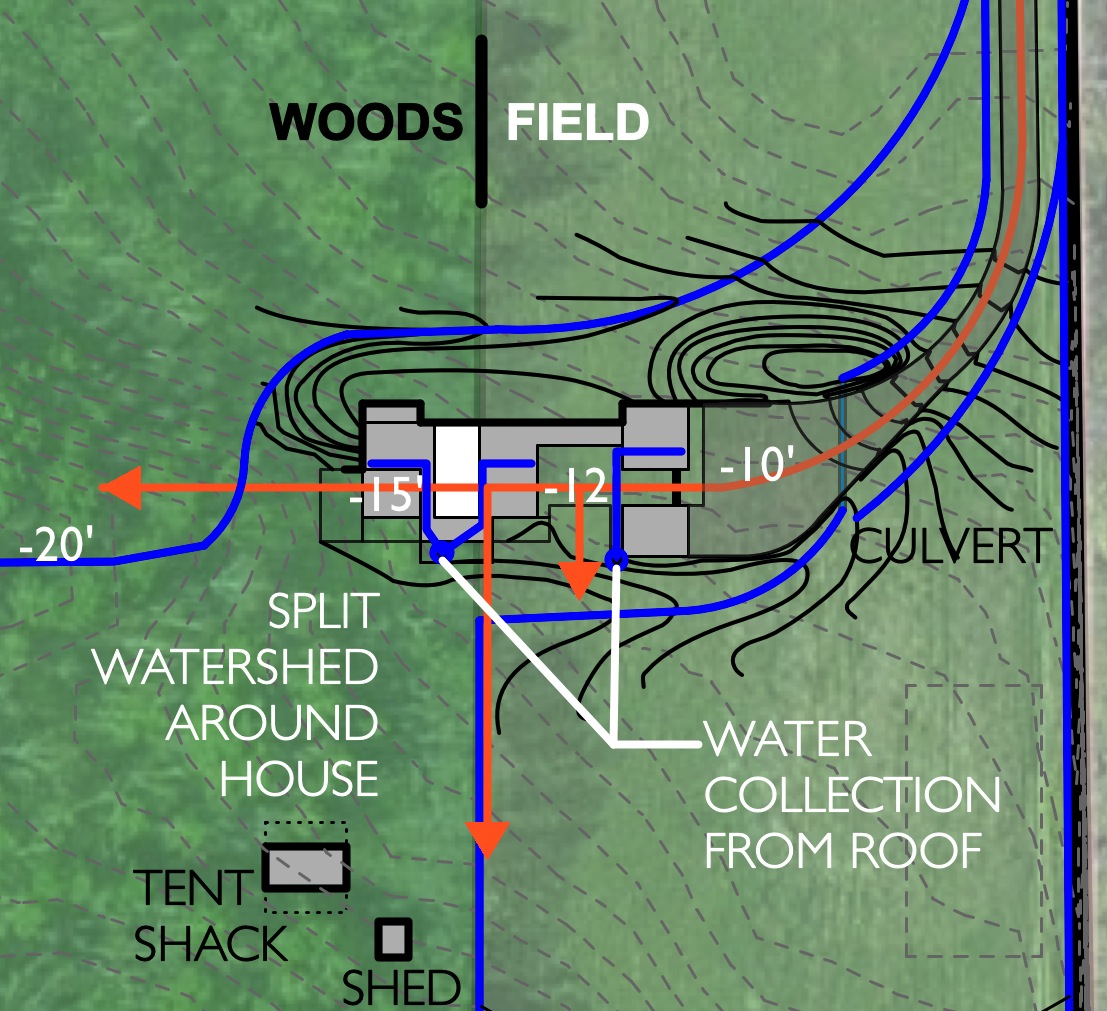

So when it came time to place the house there was a myriad of elements on site to respond to, but the story of the movement of water came more and more to the forefront. First, we placed the house in such a way as to split and define the two watersheds. The majority of the water to the north of the house, by means of a designed swale, wraps around and drains into the natural swale to the west in the woods. The water that falls on the east side, around the driveway, follows its edges down to the culvert that passes under the driveway and emerges into a swale that was designed to take water to the west edge of the field where the water is carried south. This method of splitting the watershed keeps the house in the middle on dry land.

Secondly, because of the drop in grade across the site and toward the river, we wanted this elevational change to be experienced through the design of the house. The movement through the house is a path down toward the river. The driveway begins this path dropping 10' from the elevation of the road, after exiting the car there is about a 2' drop experienced down steps entering into the courtyard, and then within the house the main level steps down 3' to the studio at the far west side. While stepping out onto the patio, the natural swale becomes visible to the west, inviting you to continue that movement down to the river. Whether this path ends in a hike to the river or not, this gravitational force toward the river is evident in the house. While the blue lines on the site plan show the common paths of water, the orange lines show the human paths of movement through and from the house. From the courtyard there is a view and flow to the south, where the future vegetable gardens will be, from the kitchen door on the south there is an alignment with the edge of the field where the ditch escorts water south, and from the patio door on the west is the path following the swale into the woods. Here paths of human movement mimic the paths of water.

Finally, to continue the conversation about water the roof of the house collects rainwater in a dramatic way. The east and west roofs of the house gently direct water onto the central roof that slopes to the south. This central roof slope ends in a canopy that through a series of complex slopes allows for both collection at an internal roof drain and overflow in the case of heavy rainfall. This water will be collected and used to water the vegetable gardens to the south. So while the position of the house is dividing the watershed on the site, the form of the house takes rainwater from two divided roofs and unites them in one location.

The other reasons for the position and layout of this house I will save for another post since this one is already getting much too long.

In Drawings, Field's Edge Progress
Comment
